FOLAMI - Evaluation solution for steel-aluminum welds in ship design

In the “FOLAMI” research project, Fraunhofer LBF focused on evaluating mixed steel and aluminum joints produced by form-fitting laser beam welding for durable semi-finished products in shipbuilding. Accompanying the welding process development, numerical and experimental investigations were carried out to verify the structural durability, initially at the sample level and then for specifically optimized adapters as connecting elements between steel and aluminum structural elements.

Im Forschungsprojekt »FOLAMI« hat sich das Fraunhofer LBF der Bewertung der durch formschlüssiges Laserstrahlschweißen erzeugten Mischverbindung aus Stahl und Aluminium für betriebsfeste Halbzeuge im Schiffbau gewidmet. Begleitend zur Schweißprozessentwicklung dienten numerische und experimentelle Untersuchungen dazu, die Betriebsfestigkeit zunächst auf Probenebene und anschließend für spezifisch optimierte Adapter als Verbindungselemente zwischen Stahl- und Aluminium-Konstruktionselementen abzusichern.

Laser beam welding as an alternative for steel-aluminum joints in yacht building

In shipbuilding, especially in yacht building, multi-material joints are already widely used when lightweight aluminum is combined with conventionally processed steel materials. This steel-aluminum composite joint has been realized to date in the form of explosion-welded adapters, also known as explosive cladding. Alternatives to this manufacturing process are motivated by increased costs or design and functional limitations. Laser beam welding can lead to an alternative manufacturing process as a novel welding method.

Optimization and evaluation using simulation and peak stress method

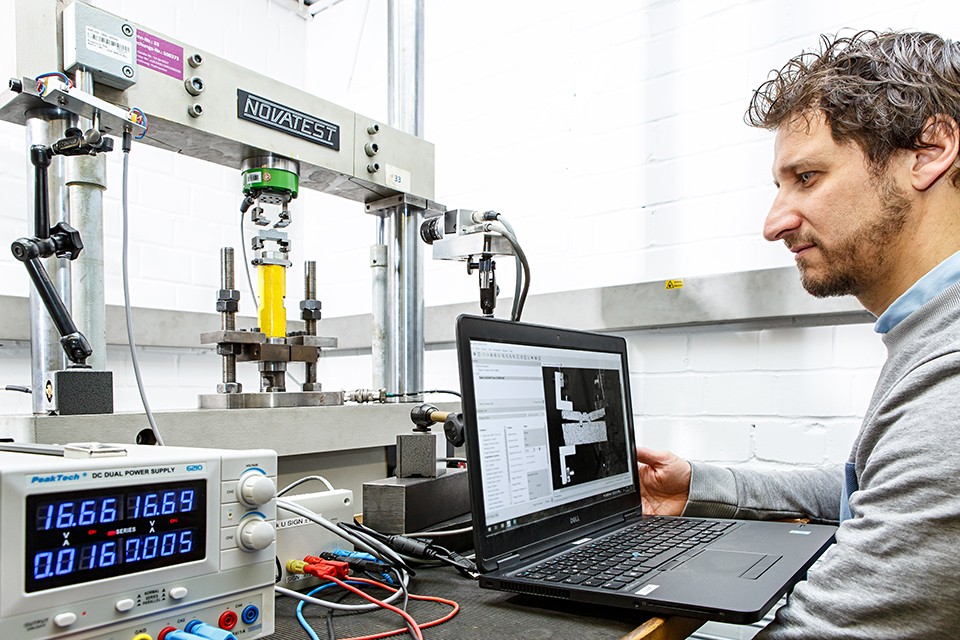

During the development of the welding process, Fraunhofer LBF initially supported the optimization of the weld seam geometries and subsequently the welding process parameters by means of numerical stress simulations. The focus of the research work was on developing a methodology for evaluating steel-aluminum laser welded joints and implementing it in a welded adapter. For this purpose, a local evaluation method, the so-called peak stress method, was transferred to the application case of steel-aluminum mixed joints with the aid of digital image correlation for strain matching.

AI-supported service life prediction for laser welds between aluminum and steel

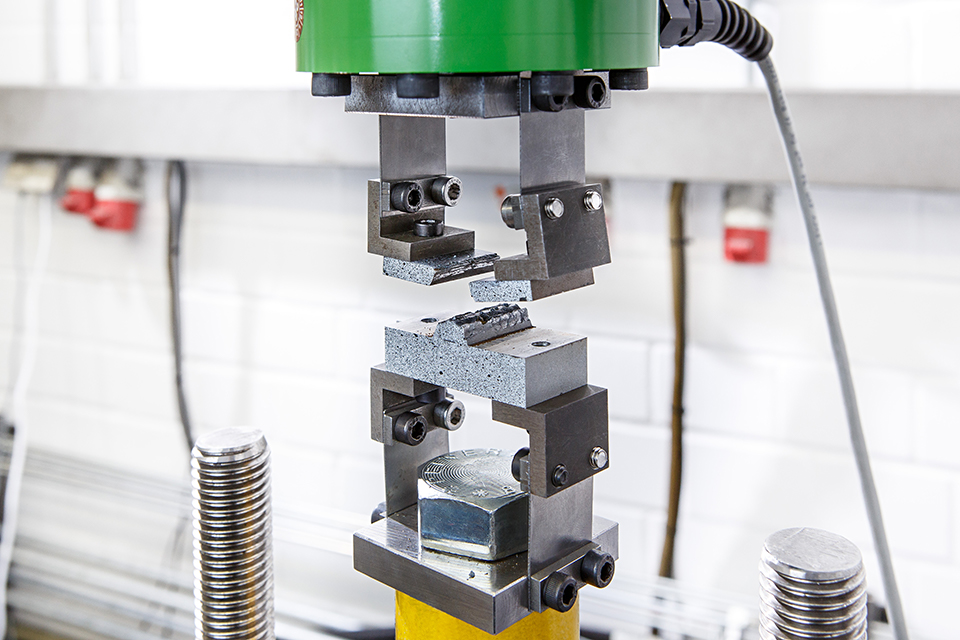

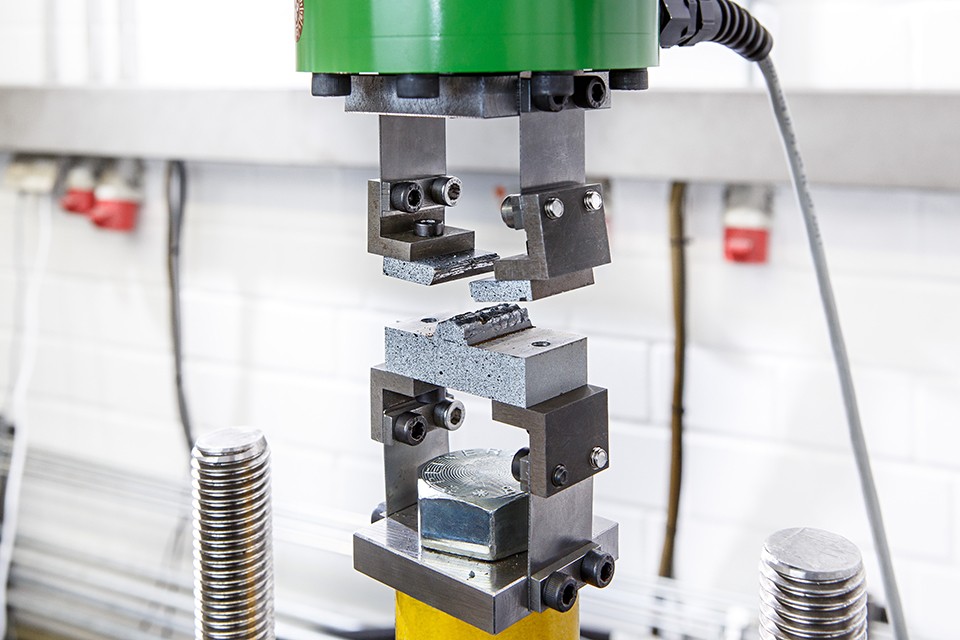

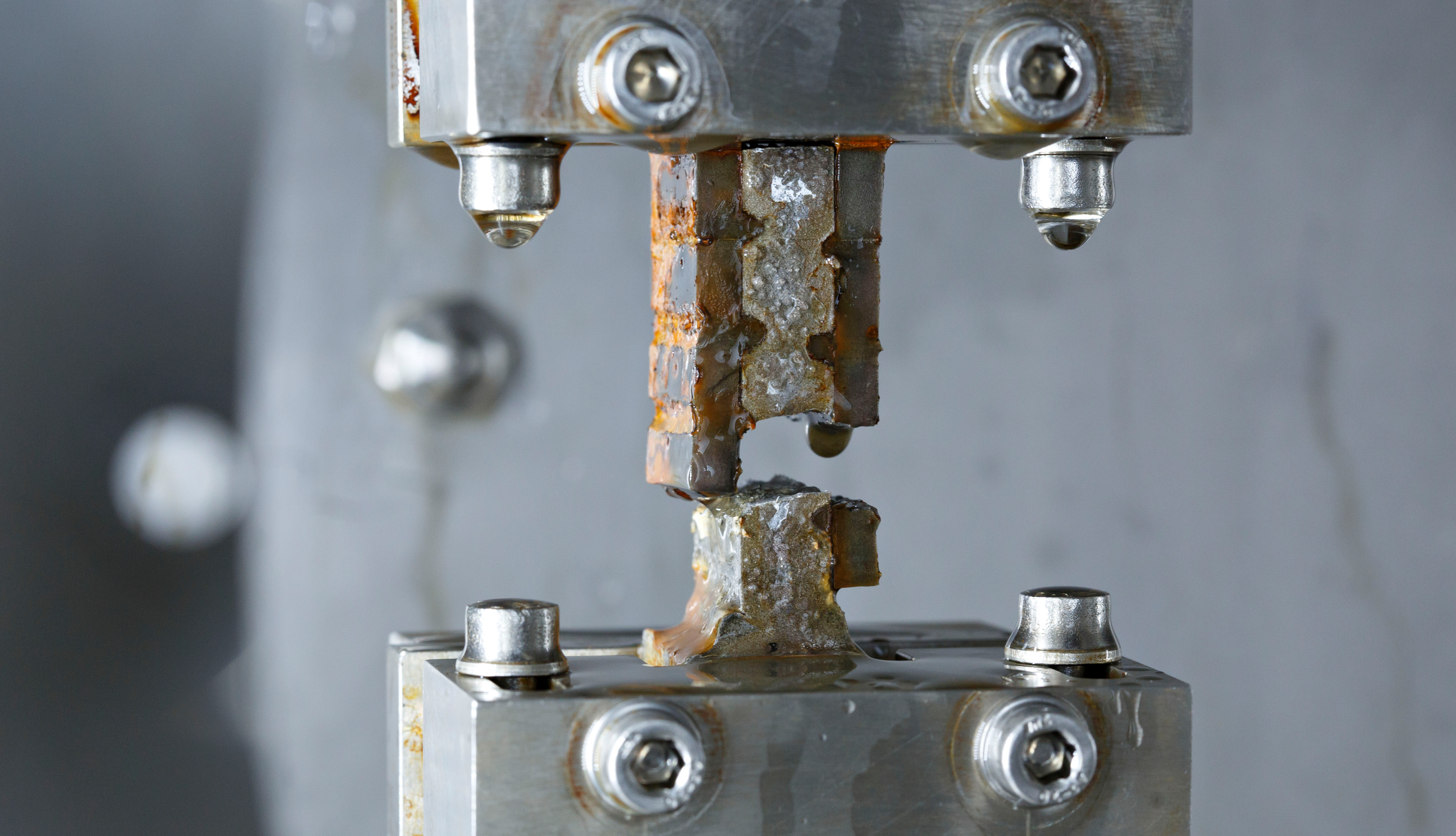

The evaluation procedure developed by the research scientists at LBF involves correlating the weld seam parameters, such as the bond width or weld penetration depth of the laser weld seam of EN AW-6082 T6 aluminum in S355 steel, with the fatigue strength derived using the peak stress method and verified experimentally. To expand the database beyond the test results, parameter variations of the weld seam geometries and finite element stress simulations were carried out to derive peak stresses, which are divided into a training and test data set for predicting the service life using a neural network.

Transferability to other joined metallic multi-material compounds

The research results not only provide an evaluation approach for this specific steel-aluminum composite, but also offer the potential for transferability to other joined metallic multi-material compounds. Against this background in particular, this evaluation method can be transferred beyond applications of welded joints in shipbuilding to applications in other industries.

Funding bodies and partners

The joint research project Form-locked laser beam welding of mixed steel and aluminum joints for durable semi-finished products in shipbuilding (FOLAMI), subproject Evaluation of mixed steel and aluminum joints produced by form-locking laser beam welding for durable semi-finished products in shipbuilding (grant number 03SX547C), conducted by Forschungszentrum Jülich GmbH (PtJ), was funded by the German Federal Ministry for Economic Affairs and Energy as part of the research program Maritime Technologies of the Next Generation based on a resolution of the German federal parliament (Bundestag).

• Research program: Next-generation maritime technologies
• Joint research project: FOLAMI – Form-fitting laser beam welding of mixed steel and aluminum joints for durable semi-finished products in shipbuilding
• Research project: Evaluation of mixed steel and aluminum joints produced by form-fitting laser beam welding for durable semi-finished products in shipbuilding
• Grant number: 03SX547C

Duration: June 1, 2021 – December 31, 2024

Project partners:

• B.I.G. Technology Services GmbH,
• Coherent (Germany) GmbH (associated)
• Fr. Lürssen Werft GmbH & Co. KG (associated)
• Hilbig GmbH (associated),
• LASER on demand GmbH
• Laser Zentrum Hannover e.V.
• MEYER WERFT GmbH & Co. KG (associated)
• Precitec Optronik GmbH
