Fraunhofer Institute for Structural Durability and System Reliability LBFIdentification and optimization of welding parameters
Research project nodularWeld - Repair welding of cast iron with nodular graphite
Components made of cast iron with nodular graphite (GJS) are used in many areas of mechanical and plant engineering as well as in automotive and energy technology. Due to good strength properties and the given possibilities of design freedom through the casting process, such components can be manufactured with high strengths and large dimensions. Particularly highly stressed components with very large dimensions and high masses are subject to special requirements in terms of fatigue strength and fracture resistance. This can often only be achieved with defect-free material structures. Demands for improved power-to-weight ratio and weight reduction lead to increasing complexity and thus to challenges in manufacturing. This increases the probability of the occurrence of imperfections due to mold filling and shrinkage as well as irregularities in the microstructure. In most cases, these defects lead to the rejection of the components due to a lack of acceptance by the casting user and ambiguous recommendations in the relevant standards regarding the effect of these defects, in particular on component strength. Due to the high cost of rejecting and recasting these large castings with defects, interest in repair processes is increasing.
In the present research project "nodularWeld", both the weldability and its influence on the fatigue behavior were investigated for three different cast iron alloys relevant in the large castings sector. Due to the different microstructural characteristics of these casting alloys - EN-GJS-400-18-LT (ferritic microstructure), EN-GJS-450-18 (ferritic solid solution strengthened microstructure) and EN-GJS-700-2 (pearlitic microstructure) - the suitable welding parameters had to be worked out in a first step on the basis of preliminary welding tests. Quasistatic and metallographic examinations were used to evaluate the weldability of the dissimilar weld. After identification of the filler metals and the welding parameters for satisfactory strength behavior, thick-walled cast plates with dimensions of 1000 x 600 x 150 mm were cast for the main test series in the first step, then machined, and in the last step the repair weld was produced.
As part of this main series of tests, small round specimens from the base material, the heat-affected zones and the weld metal were first investigated under strain control and axial loading to determine the cyclic material properties of these three material zones. Both the stress-based and strain-based cyclic material behavior were determined through investigations on integral round specimens exhibiting all three zones of the welded joint. Based on the results, reduction factors for the weld can be determined by comparing the specific Wöhler lines, and local material characteristics can be provided for numerical representation of the weld.
Selected results for the material EN-GJS-400-18-LT are shown below as examples:
Welding filler metal, semi-finished products and specimen production
Based on the preliminary welding investigations, CastoMag 45640 Ti was identified as the filler metal for the EN-GJS-400-18-LT cast material. The geometry of the weld groove for the main test series was defined in accordance with the welding standard DIN EN ISO 15614-3:2008-6 for testing welded joints with a flank angle of 110 ° and subsequently the cast plates were manufactured with dimensions of 1000 x 600 x 150 mm, Fig. 1.

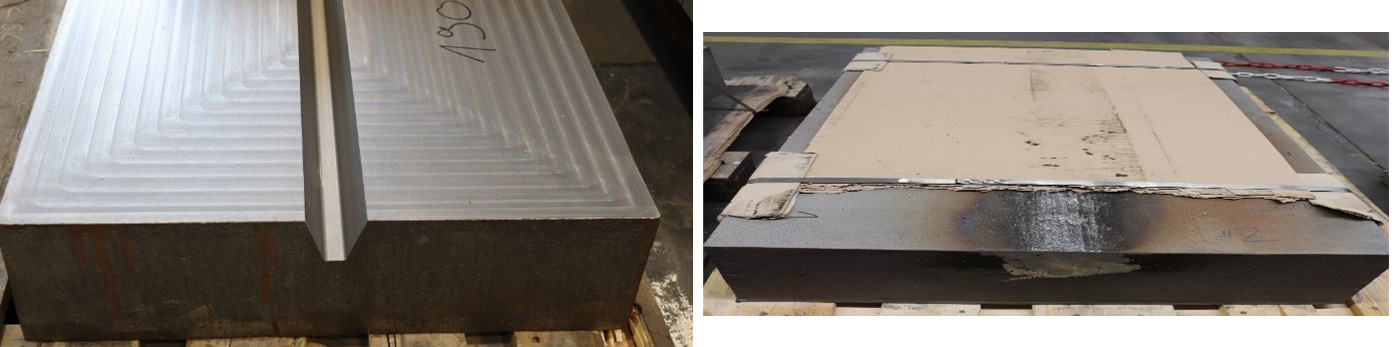

Figure 1 - Machined cast plate (left) and welded cast plate (right) for removing the round test specimens.

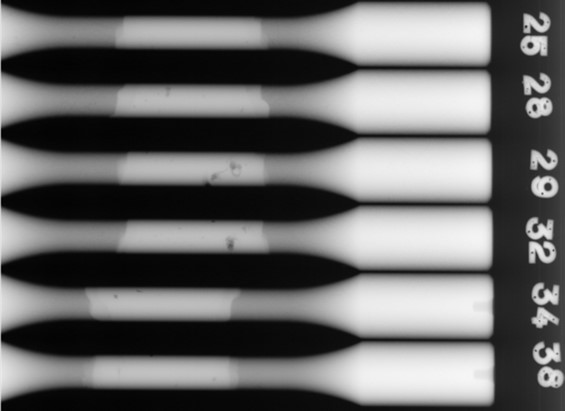

Figure 2 - Detailed view of selected x-rayed welded specimens, base material EN-GJS-400-18-LT
Circular specimens were subsequently taken from these welded plates transversely and longitudinally to the weld seam. To investigate the integral material properties, the specimens were made significantly longer and taken across the weld seam in order to cover all three areas - base material, heat-affected zone and weld metal. To analyze possible flaws introduced by welding, these specimens were X-rayed before the fatigue tests were carried out, Fig. 2
Fatigue strength evaluation
Among other things, these specimens were used to perform force-controlled tests under axial load with alternating load (R = -1) and threshold load (R = 0) in order to derive the Wöhler lines. An electrical resonance testing machine with a nominal load of 100 kN was used for this purpose. During the tests, the frequency was set in the range between 110 Hz and 120 Hz. During the tests on the integral specimens, it was observed that the failure in the higher-cycle range was primarily triggered by weld-related flaws in the weld, Fig. 3.

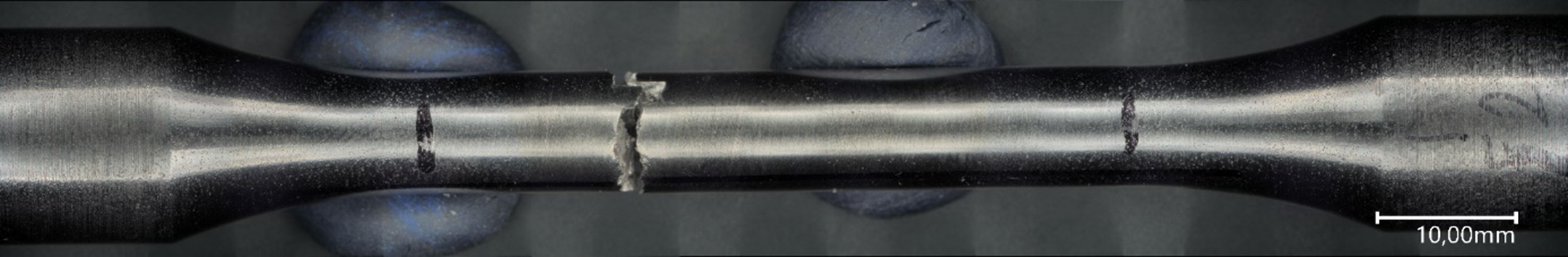

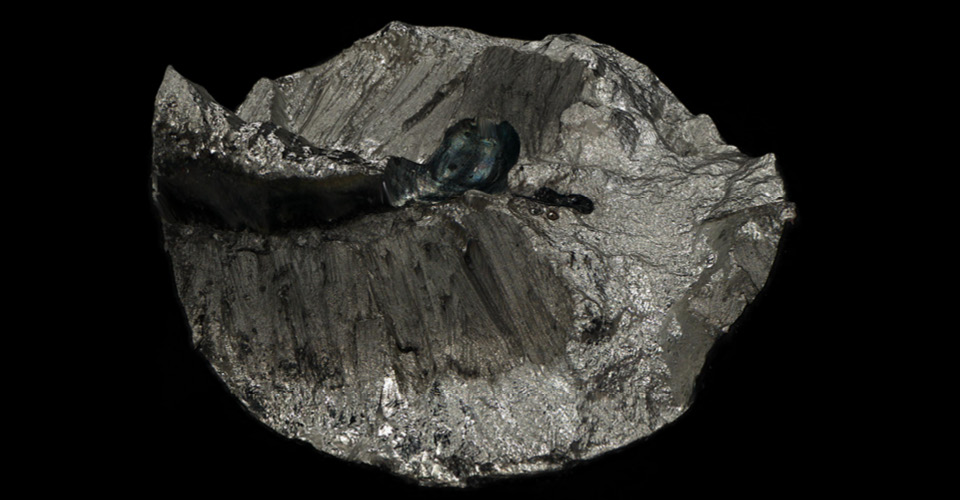

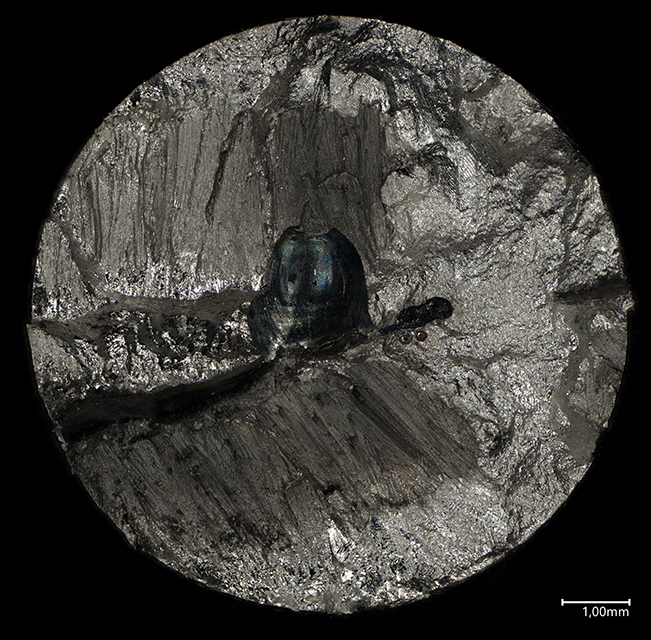

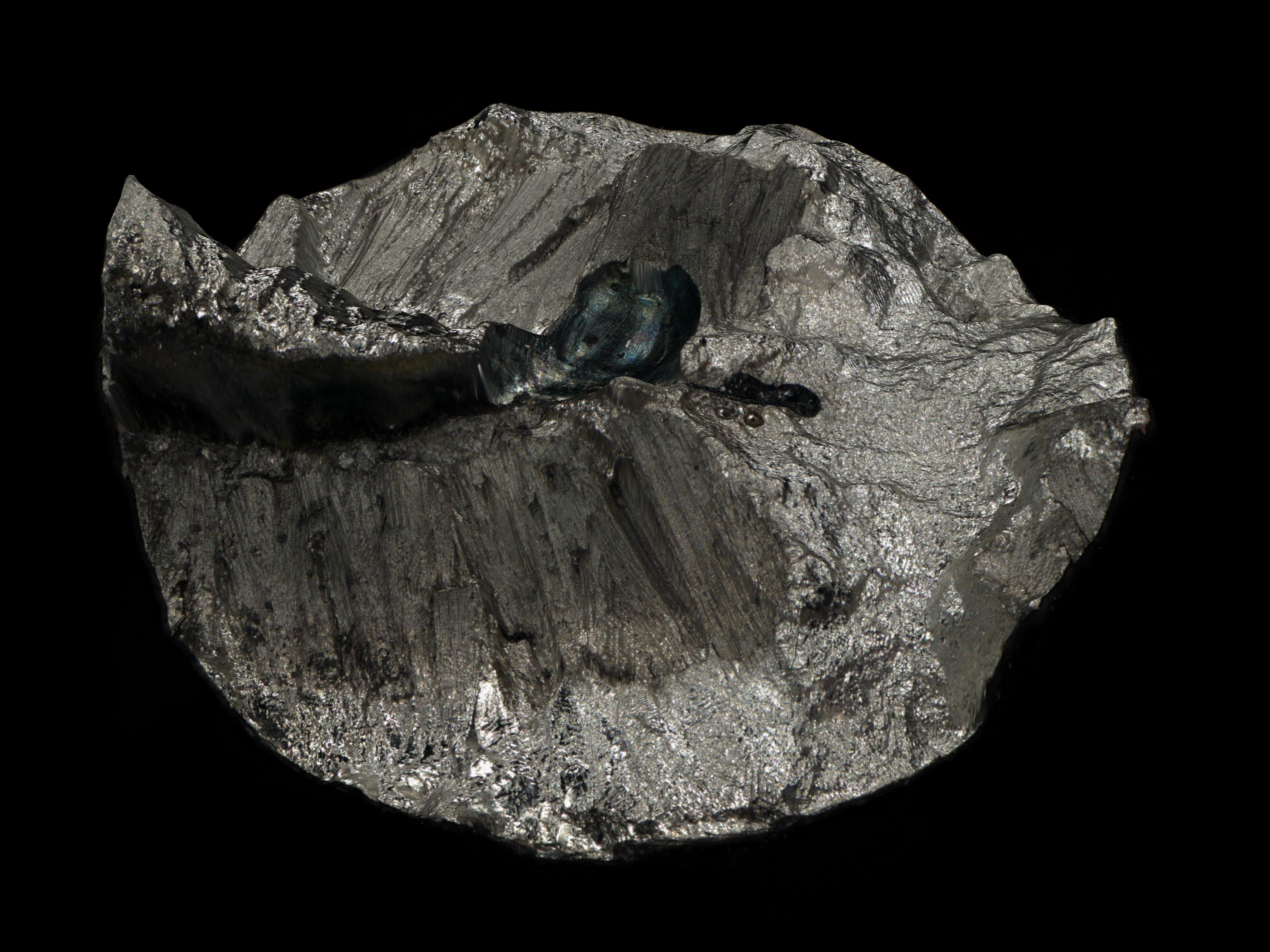

Figure 3 - Fracture image with typical failure in the area of the weld due to flaws, weld condition Integral specimen A-10, base material EN-GJS-400-18-LT

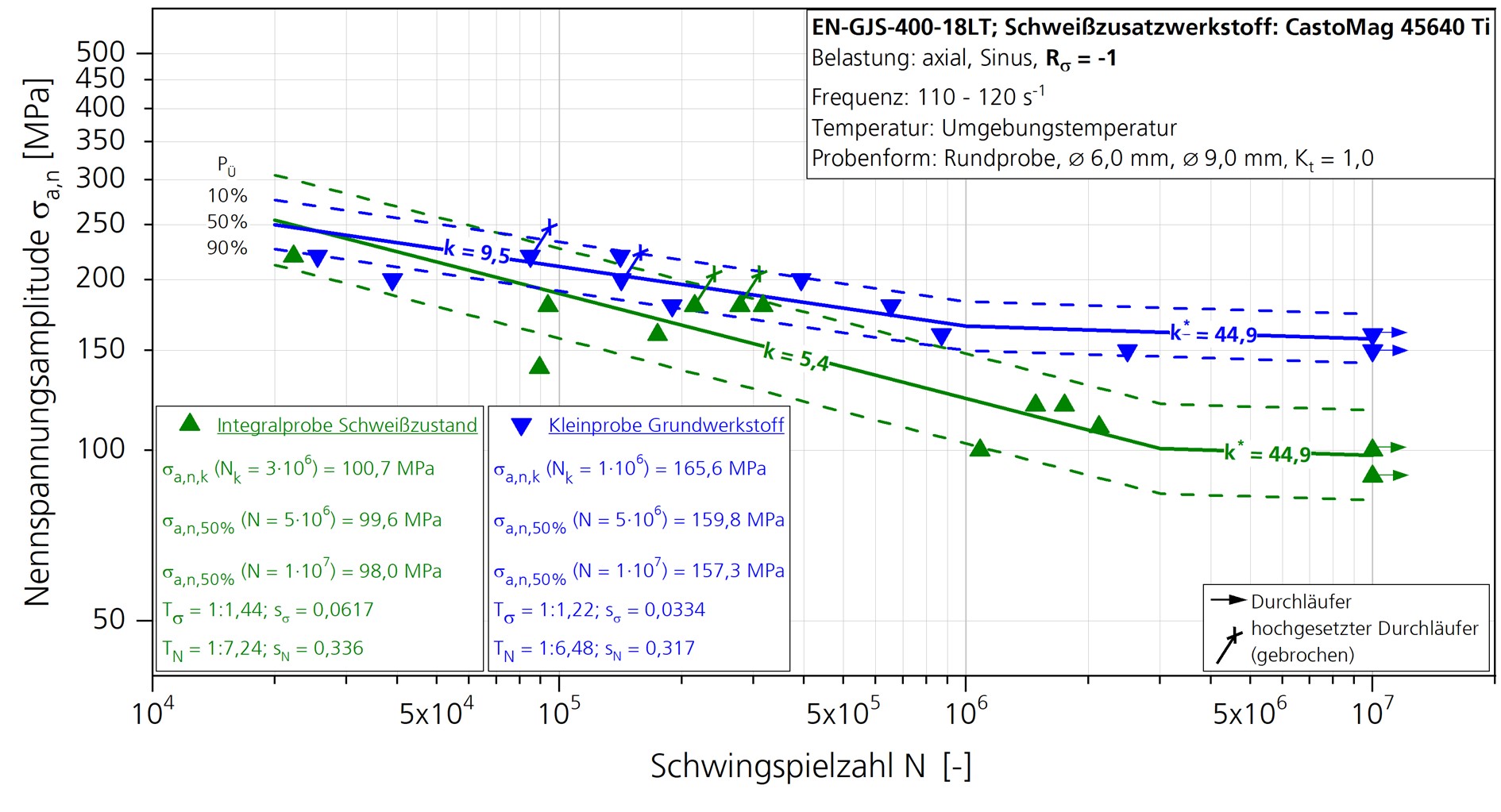

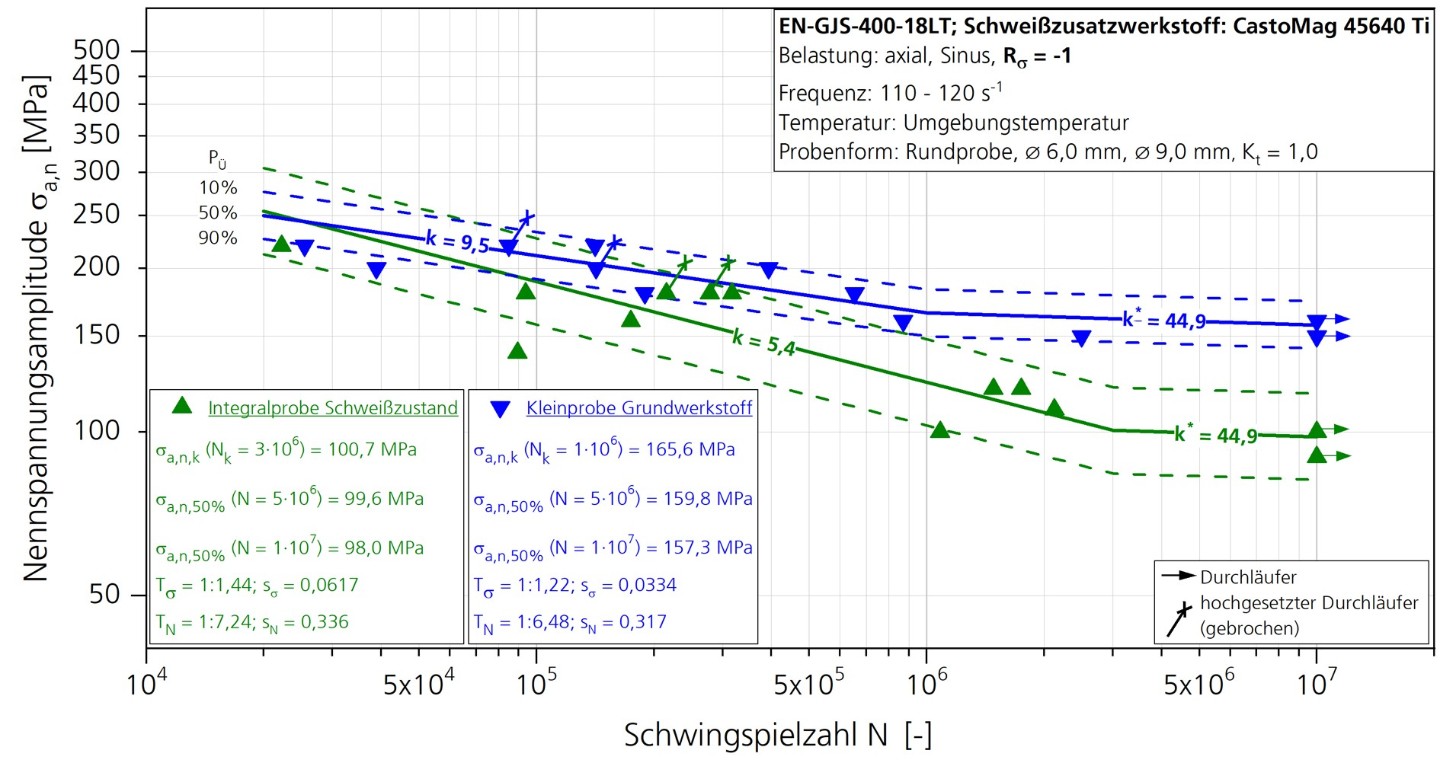

Figure 4 - Experimentally determined Wöhler curves, welding condition integral specimen, axial load, comparison of base material EN-GJS-400-18-LT and welding condition, R = -1
As an excerpt from the overall results, Fig. 4 shows the result of the comparison of the Wöhler lines determined on the base material and the integral specimen for alternating load. The base material was characterized with so-called small specimens of 6 mm diameter, which were drawn in over a length of 11 mm. The integral specimens had a larger diameter of 9 mm, since the failure-critical drawn-in area was significantly larger at 50 mm and buckling of the specimens in the elastic-plastic range was thus to be avoided.
The comparison of the Wöhler lines shows that welding has a reducing effect on the fatigue strength and thus on the load-bearing capacity, especially in the higher-cycle range. In addition to an increased scatter of the test results, there is a reduction of the tolerable nominal stress amplitude by about 38 % in relation to a service life of 5∙106 oscillations.
This reduction in fatigue strength would have to be taken into account when planning a possible repair weld in order not to jeopardize the reliability of the components. Due to the lower strength properties, the repair welding process is therefore primarily suitable for low-stress material areas or less functionally relevant areas of the cast components to be repaired.
Promotion
Research project "nodularWELD" - Identification and optimization of welding parameters for repair welding of cast iron components with nodular graphite with adjustment of a defined microstructure to ensure comparable static and cyclic strength characteristics of the weld zone, heat-affected zone and base material; funding code 0324273A, BMWK, PtJ
